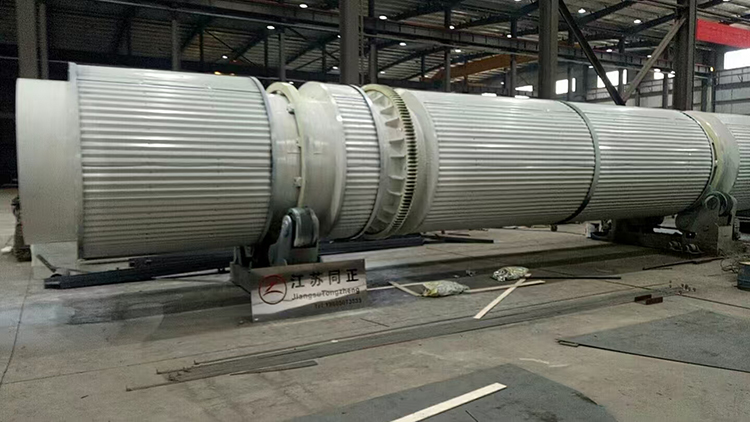

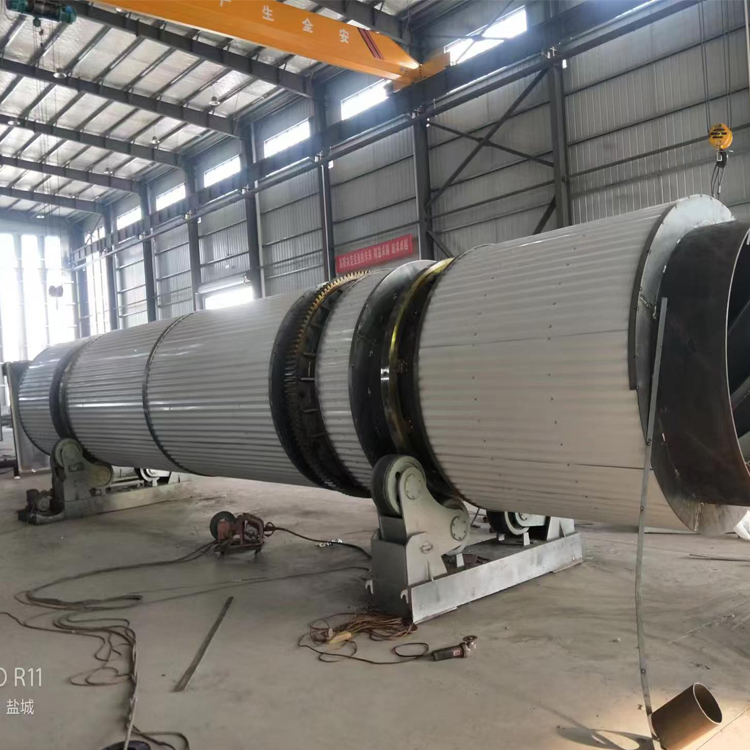

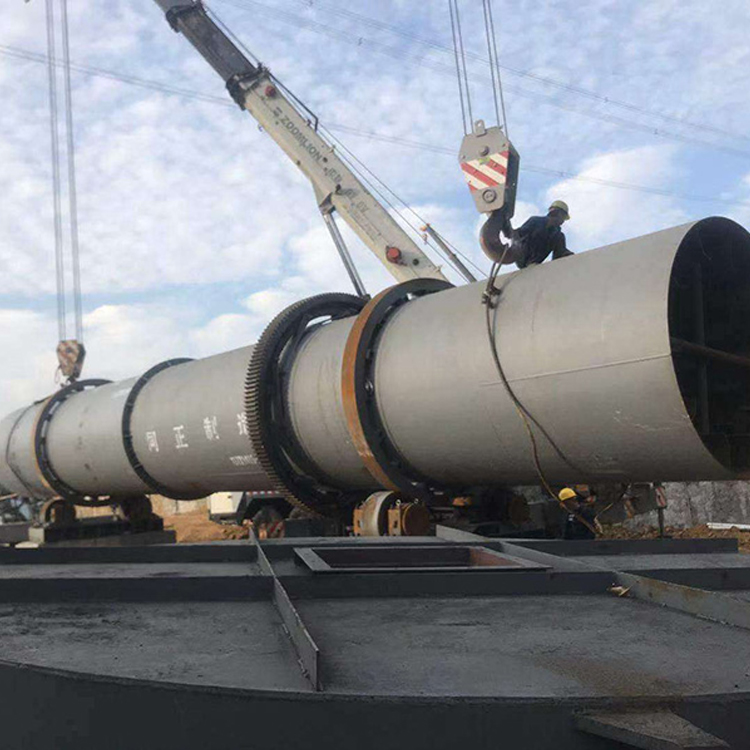

Single-drum rotary horizontal dryer
The supply of drying heat can be hot blast furnace, fluidized bed furnace or gasifier furnace , which can be designed separately according to the regional resources, so as to effectively reduce the production cost.
The heat exchange between the heat and materials in the section is sufficient. A specially designed lifting plate is used. At the same time, a multi-layer heating device is added in the dryer, so that the heat can fully stay within the length of the horizontal dryer and achieve full heat exchange with materials.
The automatic temperature control system can effectively adjust the heating efficiency of various furnace types to ensure energy conservation.
The material is dried by the downstream process to keep its activity unchanged.
Single-drum rotary horizontal dryer Description
The supply of drying heat can be hot blast furnace, fluidized bed furnace or gasifier furnace , which can be designed separately according to the regional resources, so as to effectively reduce the production cost.
The heat exchange between the heat and materials in the section is sufficient. A specially designed lifting plate is used. At the same time, a multi-layer heating device is added in the dryer, so that the heat can fully stay within the length of the horizontal dryer and achieve full heat exchange with materials.
The automatic temperature control system can effectively adjust the heating efficiency of various furnace types to ensure energy conservation.
The material is dried by the downstream process to keep its activity unchanged.
Single-drum rotary horizontal dryer Technical Specification
技术性能参数表\TZFH Technical Specification
| 规格型号 model 技术参数 Technical Parameter | 中1.5*12m | 中1.8*14m | 中2.0*14m | 中2.2*16-18m | 中2.4*18-22m | 中3.0*10-25m |
| 烘干形式 drying Type | 顺流Direct | 顺流Direct | 顺流Direct | 顺流Direct | 顺流Direct | 顺流Direct |
| 生产能力 Capacity | 15-17T | 18-20T | 25-28T | 30-38T | 42-55T | 65-75T |
| 物料初水分 Initial moisture | 20 | 20 | 20 | 20 | 20 | 20 |
| 物料终水分 Final moisture | ≤2 | |||||
| 最高进气温度 Max.inlet temperature | 800℃ | |||||
| 电机功率 Power | 15KW | 18.5KW | 22KW | 30KW | 45KW | 55KW |
| 热耗 Heat consumption | 3500-3995CALKG干料(D) | |||||
| 热效应 Heat consumption | >80% | |||||
| 蒸发强度 Evaporation intensity | 40-60KgH₂O/m²h | |||||
