High Quality Low Price Jet Pulse Long Bag Type Bag Dust Collectors Used in Cement Plant
The Jet Pulse Long-Bag Dust Collector is an advanced industrial air pollution control device designed for high-efficiency particulate matter (PM) removal in large-scale applications. It combines pulse-jet cleaning technology with extended-length filter bags to achieve superior dust collection performance, low pressure drop, and energy-saving operation.
- High-Efficiency Filtration
– Utilizes long filter bags (typically 6–8 meters) to maximize filtration area, reducing equipment footprint while maintaining high dust capture efficiency (up to 99.9% for fine particles).
- Pulse-Jet Cleaning System
– Employs compressed air pulses to dislodge dust from bag surfaces, ensuring continuous operation with minimal maintenance. The automated cleaning cycle enhances bag life and sustains optimal airflow.
- Robust Construction
– Fabricated from durable materials (e.g., carbon steel/stainless steel) with anti-corrosion coatings, suitable for harsh industrial environments (cement, metallurgy, power plants, etc.).
- Low Energy Consumption
– Optimized airflow design and low-resistance filter media reduce fan power requirements, lowering operational costs.
- Adaptability
– Handles high dust loads and varying particle sizes (including PM2.5 and PM10). Modular design allows customization for specific industrial needs.

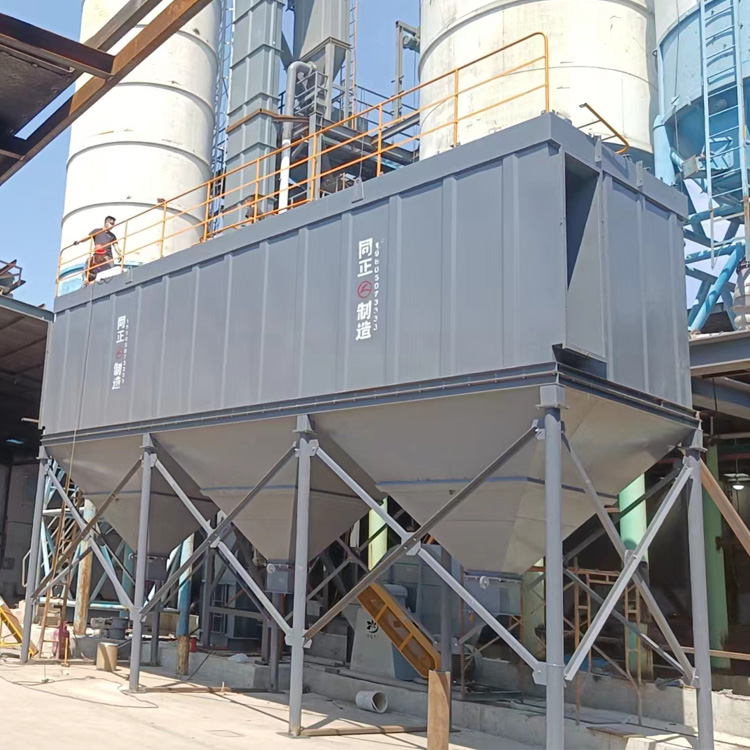

High-quality pulse jet bag filter dust collector Pulse jet bag filter dust collector price Pulse jet bag filter dust collector for cement plants Description
Overview:
The Jet Pulse Long-Bag Dust Collector is an advanced industrial air pollution control device designed for high-efficiency particulate matter (PM) removal in large-scale applications. It combines pulse-jet cleaning technology with extended-length filter bags to achieve superior dust collection performance, low pressure drop, and energy-saving operation.
Key Features:
- High-Efficiency Filtration
– Utilizes long filter bags (typically 6–8 meters) to maximize filtration area, reducing equipment footprint while maintaining high dust capture efficiency (up to 99.9% for fine particles).
- Pulse-Jet Cleaning System
– Employs compressed air pulses to dislodge dust from bag surfaces, ensuring continuous operation with minimal maintenance. The automated cleaning cycle enhances bag life and sustains optimal airflow.
- Robust Construction
– Fabricated from durable materials (e.g., carbon steel/stainless steel) with anti-corrosion coatings, suitable for harsh industrial environments (cement, metallurgy, power plants, etc.).
- Low Energy Consumption
– Optimized airflow design and low-resistance filter media reduce fan power requirements, lowering operational costs.
- Adaptability
– Handles high dust loads and varying particle sizes (including PM2.5 and PM10). Modular design allows customization for specific industrial needs.
Pulse jet bag filter dust collector Technical/Data Sheet
| 规格型号 、
model 技术参数
Technical Parameter |
TZMC240
-2*8 |
TZMC240
-2*9 |
TZMC240
-2*10 |
TZMC240
-2*11 |
TZMC240
-2*12 |
TZMC240
-2*13 |
TZMC240
-2*14 |
TZMC240
-2*15 |
|
| 处理风量
Air volume(m³/h) |
532 | 62.20~
77.76 |
4 | 9.4 | 90368 | 1232 | 2096 | 129680 | |
| 总过滤面积
Total filter area(m²) |
11520 | 12960 | 14400 | 15840 | 17280 | 18720 | 20160 | 21600 | |
| 设备重量
G.Weight(T) |
305 | 340 | 375 | 410 | 445 | 480 | 515 | 550 | |
| 室数
Chamber(pcs) |
16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | |
| 滤袋
Filter bag |
数量(个)
Quantity(pcs) |
3840 | 4320 | 4800 | 5280 | 5760 | 6240 | 6720 | 7200 |
| 规格(英寸)
Specitication(inch) |
φ160*6000 | ||||||||
| 脉冲阀
Pulse Valve |
数量(个)
Quantity(pcs) |
240 | 270 | 300 | 330 | 360 | 390 | 420 | 450 |
| 阻力
Resistance(Pa) |
≤1500 | ||||||||
| 过滤风速
Filtering wind speed(m/mi) |
0.8~1.0(如有用户需要，可根据具体情况降低或提高)
If the user needs,according to particular case is lower or higher |
||||||||
| 入口浓度
The entrance concentration(gNm) |
≤100 | ||||||||
| 漏风率
Air leakage rate(%) |
≤3 | ||||||||
| 气源压力
ProseurelMpa) |
03~0.5 | ||||||||
Pulse jet bag filter dust collector for cement plants Applications
– Cement and mining industries
– Steel and metallurgical plants
– Coal-fired power stations
– Chemical and pharmaceutical manufacturing
– Waste incineration and recycling
